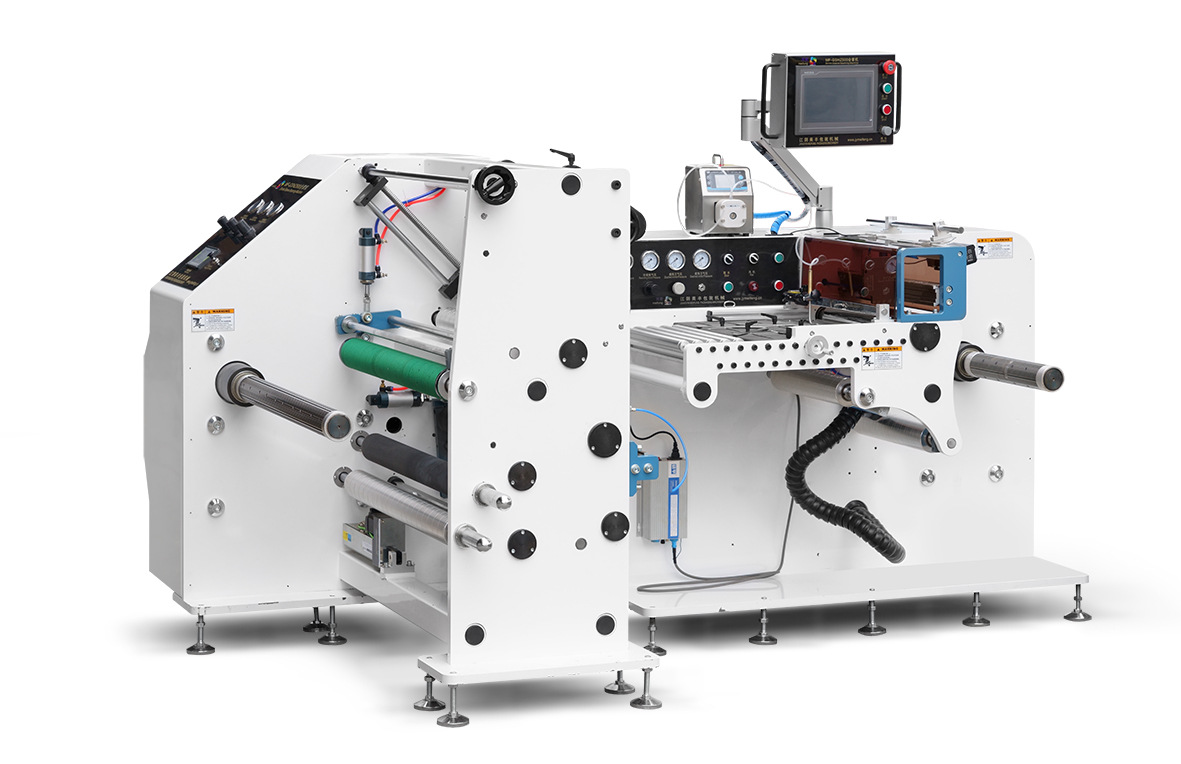

MF-GSHZ-300A High speedShrink Sleeve Seaming Machine
MF-GSHZ-300A型高速合掌涂胶机是我厂结合国内外先进技术而开发的一款高性价比的优质产品,该产品专项用于将PVC、PET等彩印收缩膜材料合掌成形为卷筒状包装材料。如:饮料瓶标签,笔套等。本机器采用10.4英寸人机界面显示,欧姆龙PLC控制,收放卷自动恒张力控制,超声波自动纠偏系统,自动涂胶,自动计米,自动计个,自动跟踪静止画面等特点。
MF-GSHZ-300A is a cost-effective high quality product which is developed by our factory combined with domestic and international advanced technology .It is specialized for compounding PVC,PET and other colour membranes to all kinds of cylindrical packaging materials. Example: drinking bottle labels, pen loops, etc. This machine adopts 10.4 inch man-machine interface display andOmron PLC control.Its feature is automatic constant tension reeling, ultrasonic automatic correction system,automatic gluing,automatic counting meters.
主要技术参数Main Technical Parameters
l 电源Voltage 三相四线制50Hz 380V
l 功率消耗Power 5Kw
l 放卷最大直径Diameter of unwinder 500mm
l 收卷最大直径Diameter of rewinder 700mm
l 纸管内径Paper core inner diameter 76mm
l 合掌精度 ≤0.5mm
l 合掌机械速度Placing Speed 450m/min
l 合掌宽度Placing width 300mm
l 整机重量Weight 1000kg
l 外型尺寸(长*宽*高)Overall dimensions 3180*1450*1550mm
